Replacing a Part List
In this part of the extended example, you’ll learn how to replace a part list in your application by creating a custom Svelte component, StaffAccordion.svelte, to display and manage a list of teachers within an accordion.
Step 1: Create the Svelte Component
We’ll create the StaffAccordion.svelte component to replace the default projection of the teachers property in the Staff model unit.
The Script Section
Begin by defining the component’s parameters and the necessary state management functions:
// CourseSchedule/phase4/src/external/StaffAccordion.svelte#L9-L55
// This property is a parts list, therefore the external box to use is an PartListReplacerBox.
// Props
let { editor, box }: FreComponentProps<PartListReplacerBox> = $props();
let panelOpen: boolean[] = $state([]); // List of booleans to indicate which panel is open (true) and closed (false).
let multiplePar: boolean = $state(false); // Indicates whether multiple panels may be open at the same time.
let ch = $state([...box.children])
/*
Sets all panels in the state 'closed',
and sets the length of 'panelOpen'.
*/
function initialize() {
let param: string | undefined = box.findParam("multi");
if (param === "multiple") {
multiplePar = true;
}
panelOpen = []
for (let i = 0; i < box.children.length; i++) {
// this also sets the length of panelOpen!
panelOpen[i] = false;
box.children[i].isVisible = false; // the child boxes are not currently shown
}
}
// The following three functions need to be included for the editor to function properly.
// Please, set the focus to the first editable/selectable element in this component.
async function setFocus(): Promise<void> {
for( let i=0; i < box.children.length; i++) {
if (panelOpen[i]) {
box.children[i].setFocus();
}
}
}
const refresh = (why?: string): void => {
console.log("REFRESH ACCORDION")
// do whatever needs to be done to refresh the elements that show information from the model
untrack( () => initialize() );
};
const addPerson = () => {
// Note that you need to put any changes to the actual model in a 'AST.change or AST.changeNamed',
// because all elements in the model are reactive using mobx.
AST.change(() => {
let newPerson: Person = Person.create({});
box.getPropertyValue().push(newPerson);
});
}We implement setFocus so that when focus is programmatically set to the list, it forwards focus to the first open panel’s content.
initialize reads the multi parameter (from the .edit file) and initializes panelOpen.
We also provide addPerson and removePerson to mutate the list. Because the AST is reactive via MobX, changes must be wrapped in AST.change (or AST.changeNamed).
// CourseSchedule/phase4/src/external/StaffAccordion.svelte#L57-L72
const removePerson = (index: number) => {
// Note that you need to put any changes to the actual model in a 'AST.change' or
// 'AST.changeNamed', because all elements in the AST model are reactive using mobx.
AST.change(() => {
box.getPropertyValue().splice(index, 1);
});
}
// Run the initialization
initialize();
$effect(() => {
// $inspect.trace(`accordion for $effect ${box.children.length} id ${box.id}`)
// console.log(`========== $effect ${box.children.length} id ${box.id}` )
box.setFocus = setFocus;
box.refreshComponent = refresh;
// Needed to get an effectThe HTML Section
The HTML consists of a wrapper div with an Accordion and a button to add items.
Inside the Accordion, we iterate over box.children, creating a Panel per child.
For each panel header, we use AST info from childBox.node:
childBox.node.freLanguageConcept()→ the meta concept name (e.g.,Person)childBox.node.freId()→ a stable id- For ad-hoc access to properties without casting, we use typed index access:
childBox.node["name"].
The panel content renders the native Freon component for the child via RenderComponent, and includes a remove button.
// CourseSchedule/phase4/src/external/StaffAccordion.svelte#L78-L96
});
const colorCls: string = 'text-light-base-50 dark:text-dark-base-900 ';
const buttonCls: string =
'bg-light-base-600 dark:bg-dark-base-200 ' +
'hover:bg-light-base-900 dark:hover:bg-dark-base-50 ' +
'border-light-base-100 dark:border-dark-base-800 ';
const iconCls: string = 'ms-0 inline h-6 w-6';
</script>
<div style="display: flex; align-items: flex-end;">
<Accordion multiple={multiplePar}>
{#each ch as childBox, index}
<AccordionItem bind:open={panelOpen[index]}>
{#snippet header()}
{childBox.node.freLanguageConcept()} {childBox.node.freId()}
{/snippet}
<div style="display: flex; align-items: flex-end;">The Complete Component
// CourseSchedule/phase4/src/external/StaffAccordion.svelte
<script lang="ts">
import { AccordionItem, Accordion, Button } from 'flowbite-svelte';
import { AST, PartListReplacerBox } from "@freon4dsl/core";
import { type FreComponentProps, RenderComponent } from "@freon4dsl/core-svelte";
import { Person } from "../freon/index.js";
import { untrack } from "svelte"
import { UserAddOutline, UserRemoveOutline } from 'flowbite-svelte-icons';
// This component replaces the component for "teachers: Person[];" from model unit "Staff".
// This property is a parts list, therefore the external box to use is an PartListReplacerBox.
// Props
let { editor, box }: FreComponentProps<PartListReplacerBox> = $props();
let panelOpen: boolean[] = $state([]); // List of booleans to indicate which panel is open (true) and closed (false).
let multiplePar: boolean = $state(false); // Indicates whether multiple panels may be open at the same time.
let ch = $state([...box.children])
/*
Sets all panels in the state 'closed',
and sets the length of 'panelOpen'.
*/
function initialize() {
let param: string | undefined = box.findParam("multi");
if (param === "multiple") {
multiplePar = true;
}
panelOpen = []
for (let i = 0; i < box.children.length; i++) {
// this also sets the length of panelOpen!
panelOpen[i] = false;
box.children[i].isVisible = false; // the child boxes are not currently shown
}
}
// The following three functions need to be included for the editor to function properly.
// Please, set the focus to the first editable/selectable element in this component.
async function setFocus(): Promise<void> {
for( let i=0; i < box.children.length; i++) {
if (panelOpen[i]) {
box.children[i].setFocus();
}
}
}
const refresh = (why?: string): void => {
console.log("REFRESH ACCORDION")
// do whatever needs to be done to refresh the elements that show information from the model
untrack( () => initialize() );
};
const addPerson = () => {
// Note that you need to put any changes to the actual model in a 'AST.change or AST.changeNamed',
// because all elements in the model are reactive using mobx.
AST.change(() => {
let newPerson: Person = Person.create({});
box.getPropertyValue().push(newPerson);
});
}
const removePerson = (index: number) => {
// Note that you need to put any changes to the actual model in a 'AST.change' or
// 'AST.changeNamed', because all elements in the AST model are reactive using mobx.
AST.change(() => {
box.getPropertyValue().splice(index, 1);
});
}
// Run the initialization
initialize();
$effect(() => {
// $inspect.trace(`accordion for $effect ${box.children.length} id ${box.id}`)
// console.log(`========== $effect ${box.children.length} id ${box.id}` )
box.setFocus = setFocus;
box.refreshComponent = refresh;
// Needed to get an effect
ch = [...box.children]
// untrack becauise initialize causes a too many effects error
untrack( () => {
initialize()
})
});
const colorCls: string = 'text-light-base-50 dark:text-dark-base-900 ';
const buttonCls: string =
'bg-light-base-600 dark:bg-dark-base-200 ' +
'hover:bg-light-base-900 dark:hover:bg-dark-base-50 ' +
'border-light-base-100 dark:border-dark-base-800 ';
const iconCls: string = 'ms-0 inline h-6 w-6';
</script>
<div style="display: flex; align-items: flex-end;">
<Accordion multiple={multiplePar}>
{#each ch as childBox, index}
<AccordionItem bind:open={panelOpen[index]}>
{#snippet header()}
{childBox.node.freLanguageConcept()} {childBox.node.freId()}
{/snippet}
<div style="display: flex; align-items: flex-end;">
<RenderComponent box={childBox} editor={editor} />
<!-- <IconButton class="material-icons" onclick={() => removePerson(index)}>remove</IconButton>-->
<Button tabindex={-1} id="add-button" class="{buttonCls} {colorCls} " name="removePerson" onclick={() => removePerson(index)}>
<UserRemoveOutline class="{iconCls}" />
</Button>
</div>
</AccordionItem>
{/each}
</Accordion>
<!-- <IconButton class="material-icons" onclick={() => addPerson()}>add</IconButton>-->
<Button tabindex={-1} id="add-button" class="{buttonCls} {colorCls} " name="addPerson" onclick={() => addPerson()}>
<UserAddOutline class="{iconCls}" />
</Button>
</div>
Step 2: Include in the Projection
Replace the teachers property with the StaffAccordion component and pass the string parameter multi="multiple" to allow multiple panels to be open:
// CourseSchedule/phase4/defs/externals.edit#L14-L18
Staff {[
Staff in the category: ${self.name}
${self.teachers replace=StaffAccordion multi="multiple"}
]}Step 3: Do the Admin
Add StaffAccordion to the global section and register it as a custom component.
// CourseSchedule/phase4/defs/main.edit#L3-L9
global {
external {
PersonIcon,
PhoneButton,
StaffAccordion
}
}// CourseSchedule/phase4/src/external/externals.ts#L9-L15
export function configureExternals() {
setCustomComponents([
{ component: PersonIcon, knownAs: "PersonIcon" },
{ component: PhoneButton, knownAs: "PhoneButton" },
{ component: StaffAccordion, knownAs: "StaffAccordion" },
]);
}Final Result
After these steps, your editor displays the staff list in an accordion:
- All panels closed:

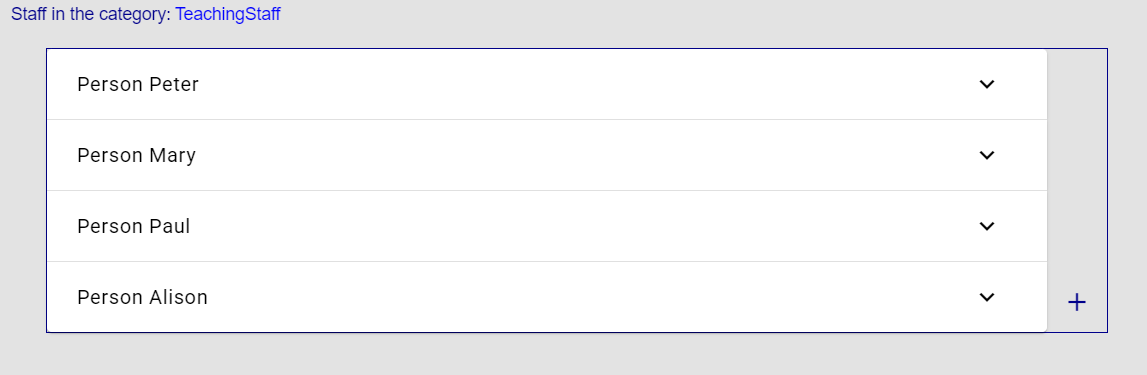

Figure 1. Staff model unit with Accordion
- A panel open:

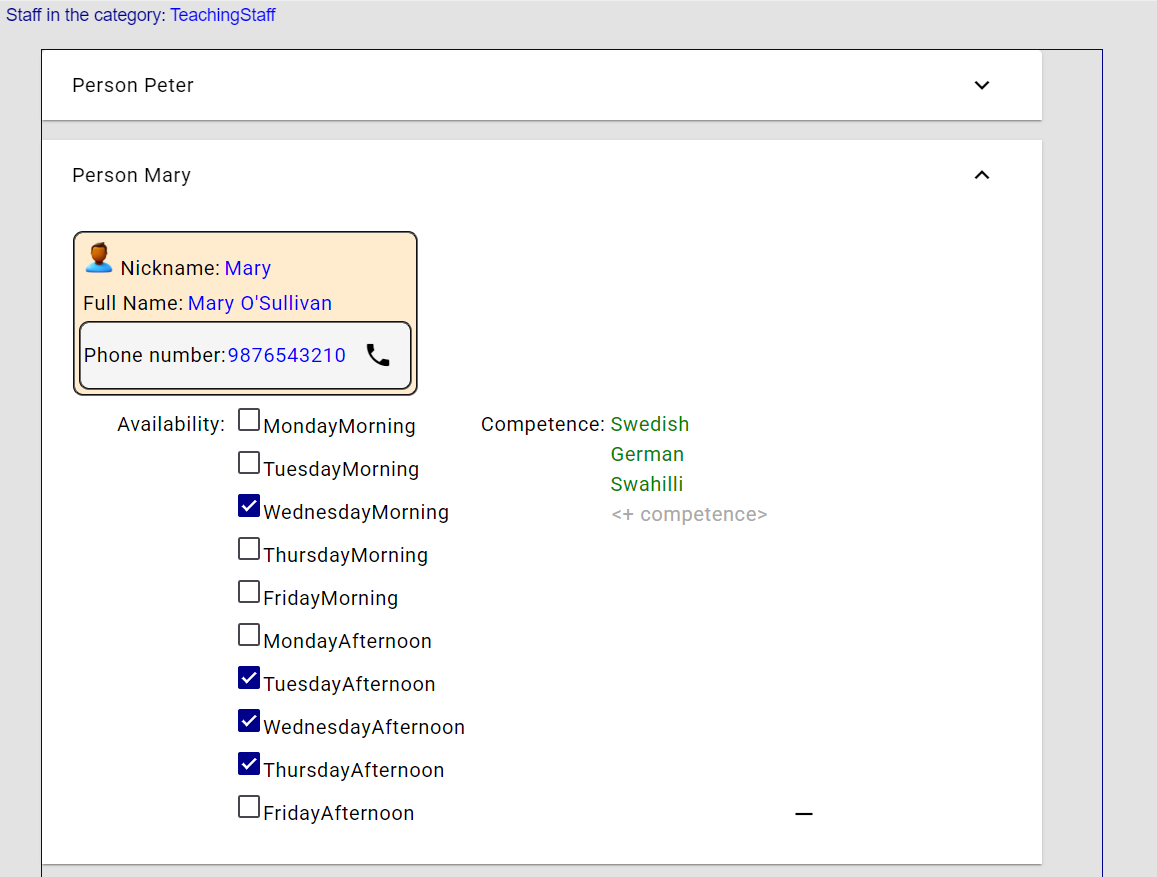

Figure 2. Accordion with open panel
Conclusion
That’s it! You’ve replaced the teachers list with a Svelte accordion.
Next, you’ll learn how to reorder AST nodes and display them in a different order.
