Defining an Editor

An editor’s behavior is specified in an editor definition file (a .edit file). You can define the following three aspects for each concept or interface:

Projection: Defines how the concept is visually represented in the editor. This is also called the concrete syntax.
Trigger (optional): Specifies the key or keys that a user must type to create a new instance of the concept and that appears in a dropdown menu.
Symbol (optional): Used exclusively for binary expressions: the character or string that represents the operator. If a symbol is not provided, the trigger will serve this purpose.

Note that projections cannot be specified for binary expression concepts or limited concepts. The editor offers specialized support for binary expressions, which cannot function properly if a user-defined projection is applied. Limited concepts are also restricted from having projections because they are intended for use as references only within the editor.

The projection comes first

For every concept or interface, define the projection before the trigger and/or symbol.

Named Editors or Projection Sets

You can define multiple projections for the same concept and switch between these different projections in the editor. This allows you to adapt the editor to a specific task or point of view.

Editors are named, allowing you to define multiple editors with coordinated sets of projections.

For example, if you group all table projections under a specific named editor, users can switch between viewing objects as lists or as tables. Similarly, you could create one editor (or projection set) that displays only a subset of properties for certain concepts, while another editor shows all properties. This flexibility allows you to accommodate different user needs.

Projections can also explicitly specify that a property must be displayed using a projection from a specific named editor. For more details, refer to Using Named Projections.

The Default Editor

Since an editor is required as a fallback when all other editors are disabled, a default editor is automatically generated if one is not provided. If a default editor is supplied but is incomplete — meaning it does not define projections for all concepts — projections for the missing concepts are automatically generated. As a result, the default editor is always complete during generation.

The generated default will show the concept’s name and all of its properties in the order given in the .ast file. List properties will be displayed as a vertical list.

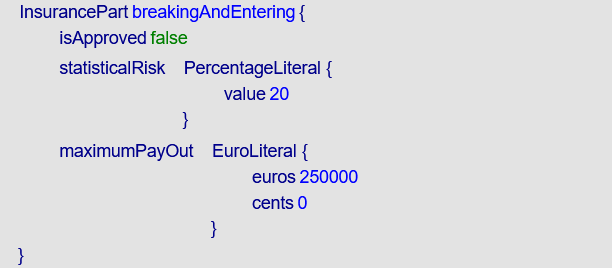

For example, if no projection is specified for the concepts InsurancePart, PercentageLiteral, and EuroLiteral instances of InsurancePart will be shown as follows.

// Insurance/src/defs/language-main.ast#L44-L49

concept InsurancePart {
    name: identifier;                       // internal name
    isApproved: boolean = false;            // indication of approval status
    statisticalRisk: PercentageLiteral;     // the statistical risk known for this event
    maximumPayOut: EuroLiteral;             // maximum payout in case the insured event happens
}

Image 'documentation/Defining-an-Editor-Screenshot.png' seems to be missing

Editor Precedence

Named editors are arranged in a specific order, which can be specified by assigning a precedence value to each editor. Projections are resolved following this order. The default editor always has the lowest precedence (0) and is evaluated last.

If a projection for a concept is not found in the editor with the highest precedence, the system checks the next editor in the sequence, continuing until it reaches the default editor.

If you do not specify a precedence, Freon assigns one based on the order in which the files are read — typically alphabetically. However, this order isn’t guaranteed.

Each editor can be defined in multiple files

Every .edit file in the folder containing your definitions is read during the generation process. If multiple files define editors with the same name, their information is merged into a single editor.

You only need to set precedence once; if defined in multiple files, the values must match.

// Insurance/src/defs/editor-tables.edit#L1-L11

/* This file contains the table definition in a separate editor / projection group.
This enables the user to switch tables on and off. */

editor tables precedence 4

InsurancePart{
table [
    Name    | risk               | pay out          | is approved
    ${name} | ${statisticalRisk} | ${maximumPayOut} | ${isApproved}
]
}

Running the Editor Generator

The generator for the editor runs every time the freon all command is executed. But it is also possible to run the generator for the editor independently. The following command will do the trick.

npm run freon edit-it -d src/defs -o src/

Incomplete code

Keep in mind that all commands, except all, when used individually (i.e., without combining them with others), produce code that may not compile correctly. For example, the scoper and validator may depend on the typer and attempt to reference its class, which might not yet be generated. Similarly, the editor may try to include the scoper.

To avoid such issues, it is best to start with the all command. Once this has been run, you can use specific commands for individual aspects of your language as needed. This approach ensures correct dependencies while minimizing regeneration time.

Example `.edit` File

A complete .edit file could look like this.

// Insurance/src/defs/editor-main-default.edit#L1-L80

/* This file contains the default editor definition. */

editor default

global {
    boolean inner-switch [YES | NO] // the strings used to display a boolean value, all booleans will default be displayed as an inner switch control
//    limited radio
//    limited[] checkbox
    // number slider  // you can use the slider control as default projection for numbers, but this will not often be the preferred option
    referenceSeparator [:] // the string that separates the names in a path name, e.g. pack1:cls3:part
    external {
        AnimatedGif,
        ExternalCard,
        ExternalAccordion,
        ExternalDialog,
        DatePicker
    }
}

// both modelunits show a single concept
Part {[ ${self.part} ]}
Product {[ ${self.product} ]}

BaseProduct {[
    Base Products ${name} for ${theme}
        ${parts}
]}

InsurancePart{
[
    Insurance Part ${self.name}
        risk assessment: ${self.statisticalRisk}
        maximum payout: ${self.maximumPayOut}
        is approved: ${self.isApproved [YES | NO]}
]
}

InsuranceProduct {[
    Insurance Product ${name} ( public name: ${productName} ) USES ${basedOn horizontal separator[, ]}
        Themes: ${themes horizontal separator[, ]}
        Premium: ${advertisedPremium} per ${nrPremiumDays}
        Insured risks:
            ${parts vertical terminator [;]}
        Calculation
            [? Risk adjusted by = ${riskAdjustment} ]
            calculated premium: ${calculation}
        [?Helper functions:
            ${helpers vertical}]
]}

CalcFunction {
    [
        ${name} ( ${parameters horizontal separator[,]} ): ${declaredType} {
            ${body}
        }
    ]
}
Description {
    [${content}]
}
Parameter {
     [${name} : ${declaredType}]
}

// No need for projections for DocuType and its implementors, they
// are only used as references, so their names suffice.

Entity {[
    ${self.isCompany [COMPANY]} ${self.name}
]}
