Traditionally, scoping concerns two questions: (1) which names are visible in a given context, and (2) to which AST node each visible name is bound. Because Freon uses a projectional editor, these two questions can be combined into one simpler question:

Which AST nodes are accessible/visible/usable within a certain context?

Generally speaking, the context in the above question is a part of the AST. For instance, for a function definition within a Java class, it is the AST fragment that represents this function. In this context, for instance, the function’s parameters are visible. Outside of this part of the AST the parameters are not visible.

In the Freon scoper definition the focus lies on the context in which a reference may appear. These contexts are called namespaces. Every namespace is a subtree of the AST where a certain set of nodes is visible. This means that anywhere within this subtree, the same set of nodes is available for reference.

In the Freon meta-language a namespace is defined using metatypes. All instances of such a metatype identify a namespace, namely the subtree of the AST whose top is such an instance. The leaves of this subtree are either the leaves of the AST, or any node that itself identifies a namespace. In other words, a namespace does not include the child nodes of another namespace. In the following example all instances of the concepts InsuranceProduct, BaseProduct, CalcFunction, Entity, AttributeRef identify a namespace. Less formally these concepts are called namespaces, but remember that the actual namespace is not a single AST node, but the entire subtree rooted at that node.

// Insurance/src/defs/scoper-docu.scope#L3-L3

isNamespace { InsuranceProduct, BaseProduct, CalcFunction, Entity, AttributeRef }

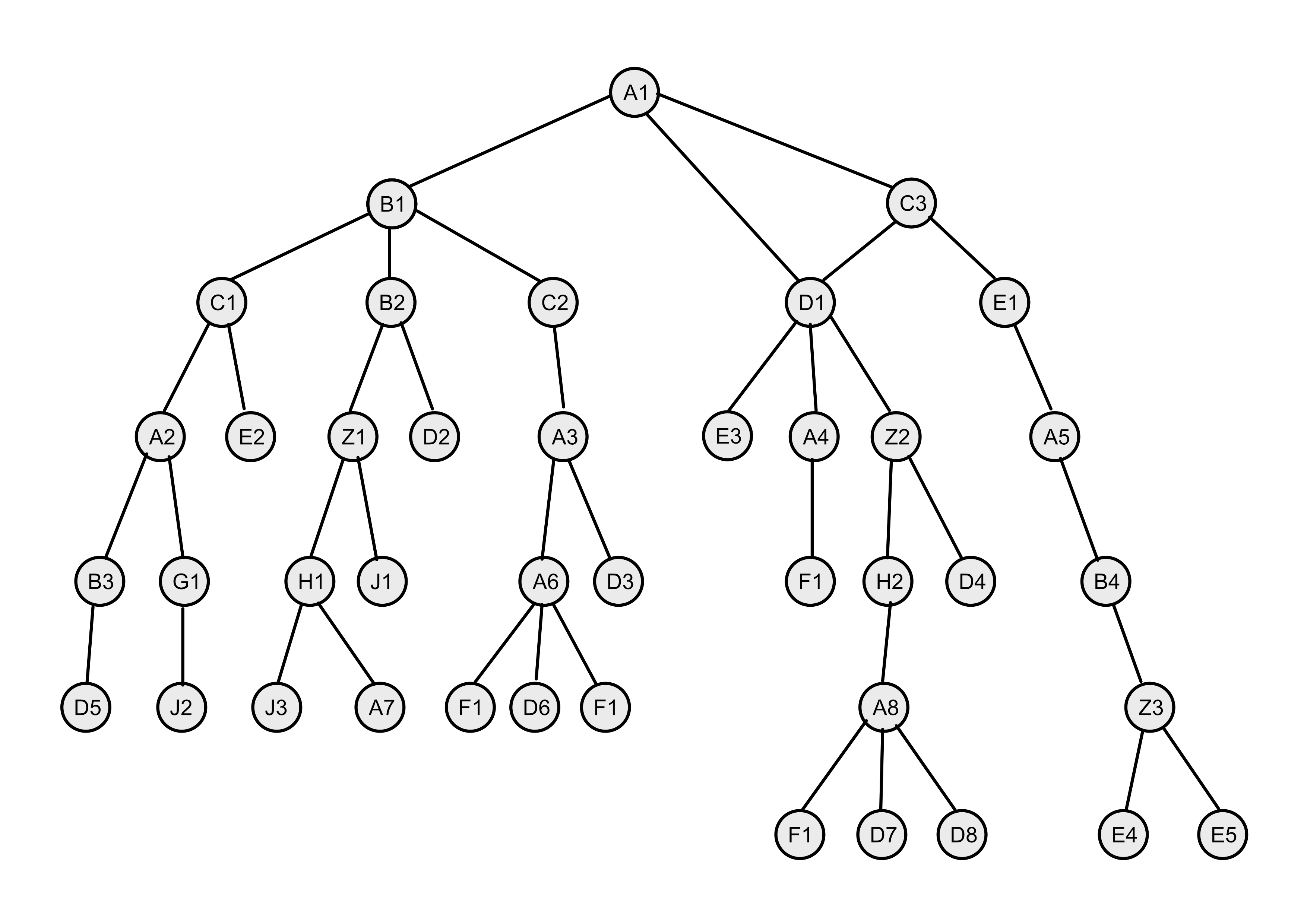

All namespaces — or more precisely, all nodes that identify a namespace — together form a tree. This tree is similar to, but distinct from the AST. The namespace tree is an overlay over the AST, where some nodes in the AST are namespaces, and some are not. The following figure shows an abstract syntax tree, where all nodes are named. In this example, we use a shorthand. If the name of the node equals A1, then the node is of type A, if it equals H4, then the node is of type H, etc.

Figure 1. An example Abstract Syntax Tree

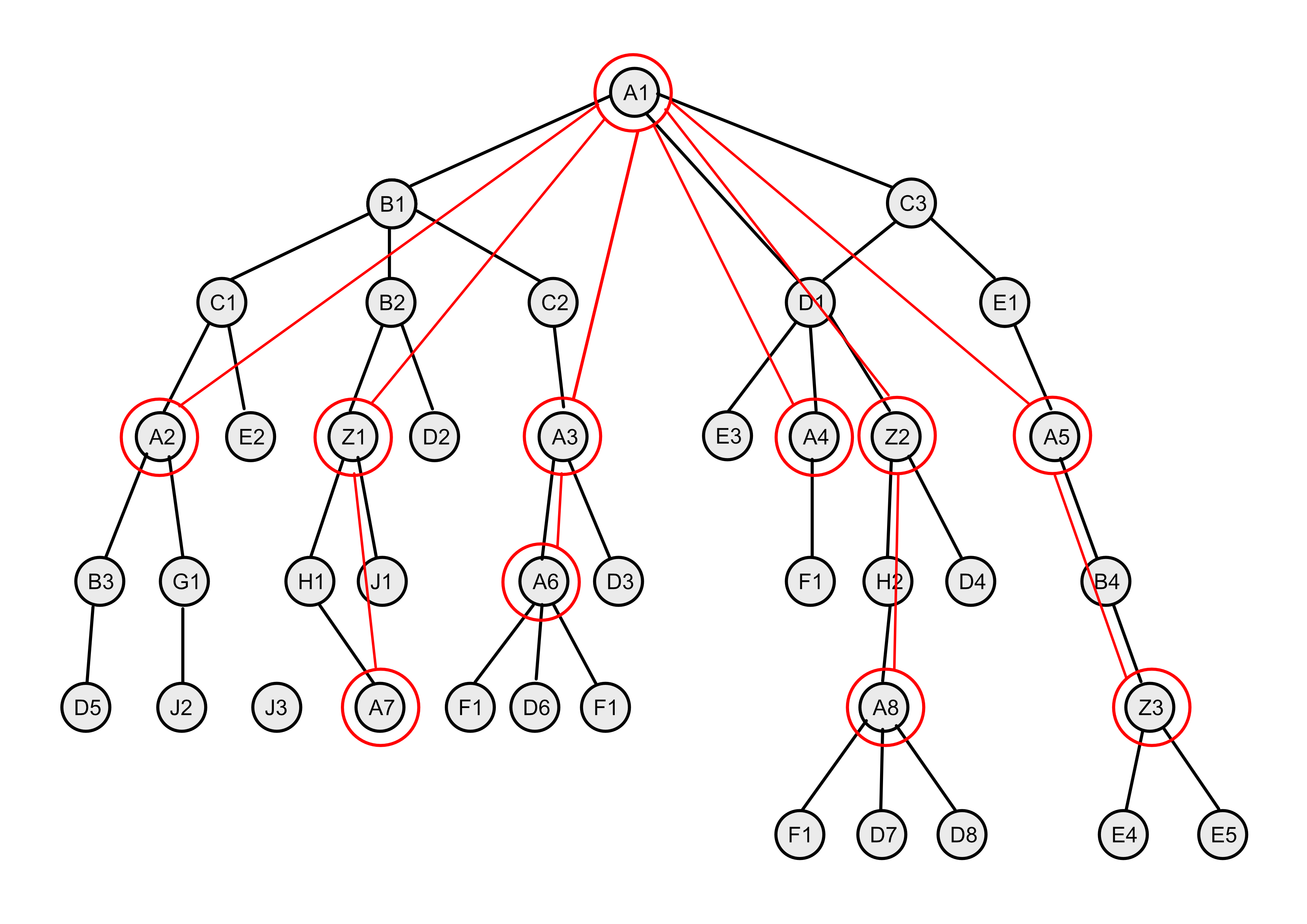

We now declare that all nodes of type A and Z are namespaces, as shown in the following figure. The namespaces are colored red. In the example below, the namespace identified by node Z2, contains nodes [H2, D4, and A8], but does not contain nodes [F1, D7, and D8].

Figure 3. Namespace Tree as Overlay on AST

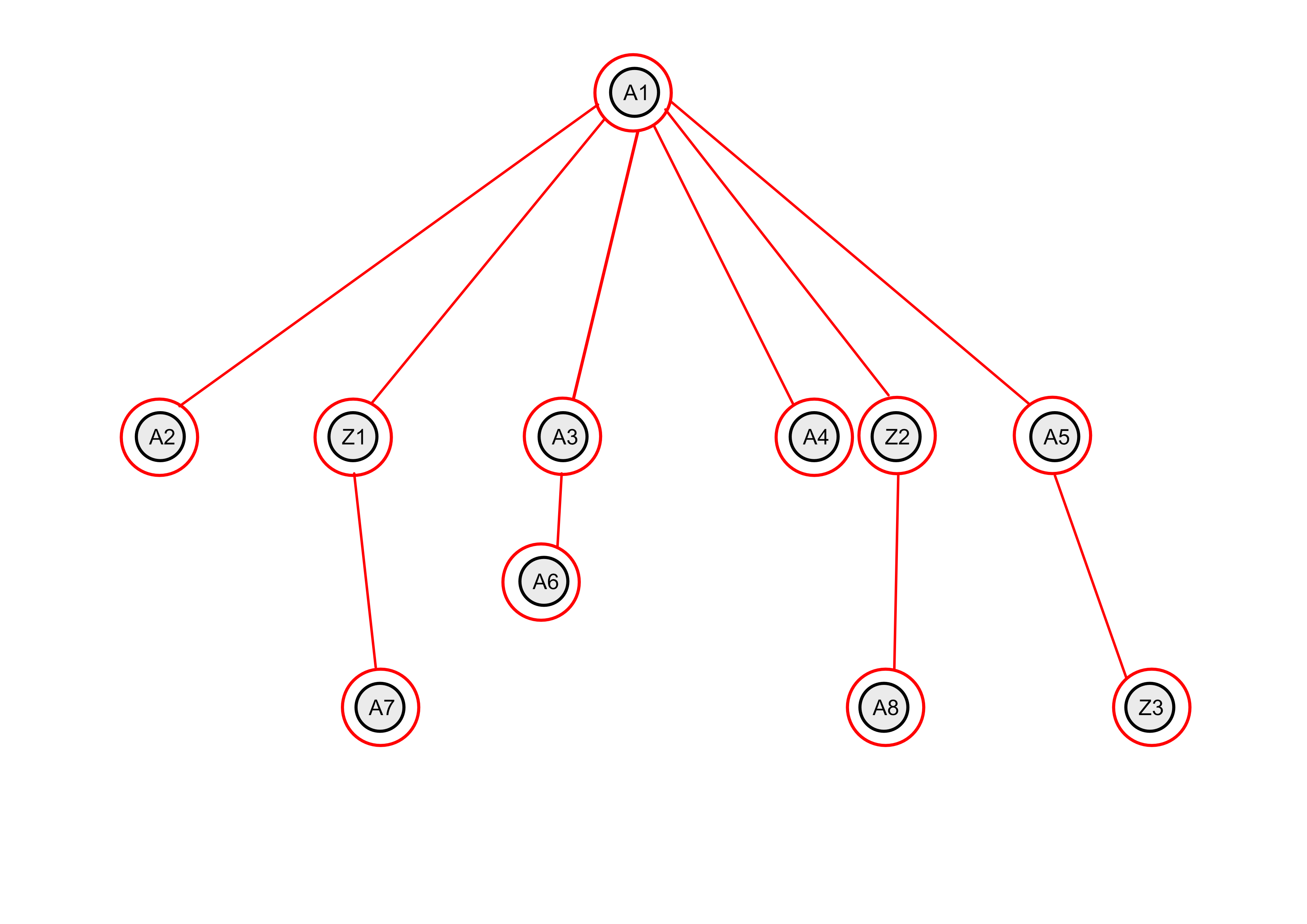

When we look at the namespaces only, the following tree appears. This is the namespace tree in which there are parent namespaces, child namespaces, and sibling namespaces.

Figure 2. The Namespace Tree

The set of nodes that are visible in a namespace is in most cases not equal to the nodes in that AST subtree. Most of the time the set of visible nodes is larger. The reason is that namespaces are traditionally hierarchical (also called lexical scope), that is, the nodes that are in the parent namespace are also visible in the child namespace, but the nodes from the child namespace are not visible in the parent namespace, except for the name of the child namespace itself.

To define this more clearly, we identify five sets of nodes for every namespace.

1. The declared nodes: all nodes that have a property name:identifier (or named nodes) in the namespace subtree.
2. The parent nodes: all named nodes that are visible in the parent namespace of this namespace.
3. The imported nodes: all declared nodes from other namespaces that have an import relationship with this namespace. This is explained in Namespace Imports.
4. The alternative nodes: all declared nodes from other namespaces that have an alternative relationship with this namespace. This is explained in Namespace Alternatives.
5. The visible nodes: all named nodes that are accessible/visible/usable within this namespace. This is the set of nodes that we are interested in. We build this set of nodes based on the other four sets.

Using these definitions, we can determine the set of declared nodes in any namespace in our example. The declared nodes of namespace A1, for instance, are the nodes [B1, C3, C1, B2, C2, D1, E1, A2, E2, Z1, D2, A3, E3, A4, Z2, and A5]. Whereas the declared nodes of namespace Z2 are [H2, D4, and A8]. The declared nodes are always part of the set of visible nodes.

In the next pages we will explain how the set of visible nodes is determined exactly. In Namespace Alternatives the algorithm - in pseudocode - that is used, is included. For now, you can take the easy route, which is to say that the visible nodes of a namespace are all its declared nodes plus all visible nodes of its parent namespace. Note the recursive nature of this definition, the visible nodes of the parent namespace are its declared nodes plus the visible nodes of its parent namespace. When there are no imports or alternatives this is the rule to stick with.

As an example, consider the namespace identified by Z2. It’s declared nodes are [H2, D4, and A8], it’s parent namespace is A1. The declared nodes of namespace A1 are [B1, C3, C1, B2, C2, D1, E1, A2, E2, Z1, D2, A3, E3, A4, Z2, and A5], and A1 does not have a parent namespace, thus the visible nodes of [Z2] are: [H2, D4, A8, B1, C3, C1, B2, C2, D1, E1, A2, E2, Z1, D2, A3, E3, A4, Z2, and A5]. So when a reference is added anywhere within namespace Z2, it is only valid when it references one of the nodes from this set. In the editor this means that the dropdown menu will show only these names.

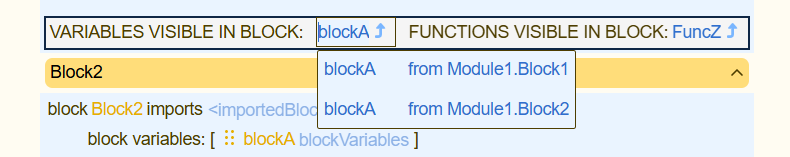

In the scope graph theory, shadowing is used to determine which node to choose if there are two nodes with the same name visible in a certain context. Normally, the node from the nearest namespace will have preference over other nodes. This is necessary because scope graphs are originally defined for use with text-based parsers. In Freon, we are using the AST as the basis for scoping, not a text that needs to be parsed. Therefore, we don’t need the concept of shadowing, as we can explicitly point to any node using the node-id. In the editor the dropdown list for a reference will show options with the same name, but a different origin.

Figure 1. Dropdown list with two nodes with the same name

In the next pages, the notions of namespace imports and namespace alternatives are explained. The last page of this section shows how to use all of these notions to create a Freon scoper definition.
